HEATING MADE EASY
Designed by the renowned Canadian company Pacific Energy, True North heaters were designed to simplify high performance stoves. The primary objective has always been to offer a quality product in terms of construction and combustion efficiency. At the same time, it must be affordable for the consumer. Refined by the expertise of the British Columbia company, True North heaters are exactly what you would expect from a stove that will heat your home for many years.
LOW BUDGET WITHOUT SACRIFICING QUALITY
Located in Duncan, British Columbia, Pacific Energy is a proud maker of the Canadian heating industry. They make their products in their own factory and employ a dedicated local workforce who put their heart and soul into every product. Over the years, the company has built a legacy that makes it one of the most trusted names in residential heating.
With their expertise, the company wanted to create a simplified experience for their devices by focusing on what matters most to users. Thus, True North was born, the brand that aims to deliver great value for the money invested. The solid 10-gauge steel construction of these minimalist-looking units is very robust. A competitive warranty that will ensure many years of trouble-free use is proudly offered.
The simplified construction still allows for the integration of technologies that will surprise many: clean glass air-wash technology, cast iron door and combustion system that meets EPA standards without a catalyst. Plus, most of these units are approved for mobile homes and small spaces. Technologies inspired by what you’d find in a Pacific Energy.
It is this transfer of technology and expertise that makes True North appliances stand out and offer excellent value for your money. Pacific Energy’s new catalyst-free wood stove and insert technology allows for lower construction costs, less long-term maintenance, and high efficiency, while meeting the strictest environmental standards.
QUALITY-DRIVEN AND VALUE-ORIENTED

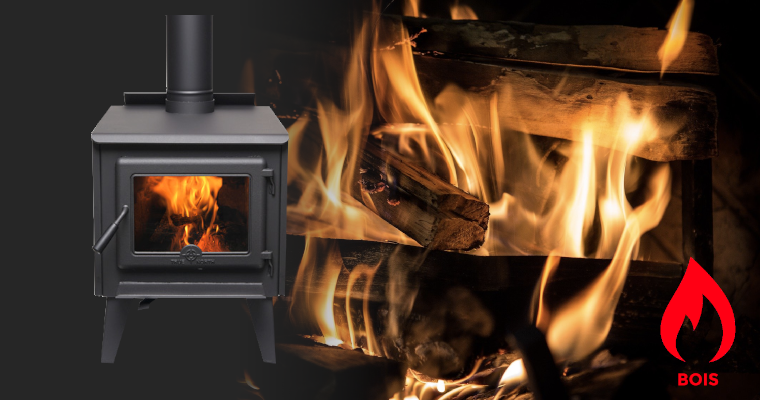

TN10 AND TN20 SERIES
In the True North line, we find a few wood-burning models, two stove-type appliances in two different sizes. A built-in model inspired by the larger wood-burning model is also included in the product offering.
Features
TN10 and TN20 Series
- Reliable and durable catalyst-free technology
- Self-cleaning air-wash system that keeps the glass clear and clean
- Indoor and outdoor combustion air intake capacity
- Heavy gauge steel top
- Approved for mobile homes
- Single-lever air supply adjustment
Technical data – TN10
- Maximum power (BTU): 30,000
- Efficiency (HHV): 78.3
- Emissions: 1.4 g/h
- Capacity: 0.02 m3 (0.8 ft3 )
- Log size (max.): 30.5 cm (12 in.)
Technical data – TN20 and built-in TN20
- Maximum power (BTU): 60,000 (55,000 for the built-in version)
- Efficiency (HHV): 78.6
- Emissions: 1.6g/h
- Capacity: 0.06 m3 (2 ft3 )
- Log size (max.): 45.7 cm (18 in.)

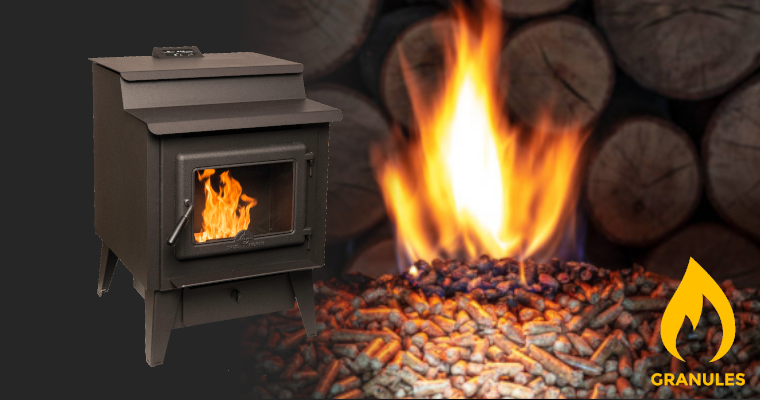

TN40 SERIES
True North offers a series of pellet appliances for those who love this easy-to-use fuel. It is a stove-type appliance also offered in a built-in version.
Features
TN40 and built-in TN40
- Easily accessible digital controls
- 3 simple modes of operation
- 5 convenient heat levels
- Automatic igniter
- Easy to open hopper lid for pellet refilling
- Approved for installation in a mobile home
Données techniques – TN40
- Puissance (BTU) : 10 250 à 40 000
- Efficacité (B415) : 72.2%
- Émissions : 1.36 g/h
- Capacité : 80 lbs de granules
Technical data – TN40
- Power (BTU): 10,250 to 40,000
- Efficiency (B415): 72.2
- Emissions: 1.36 g/h
- Capacity: 36 kg (80 lbs) of pellets

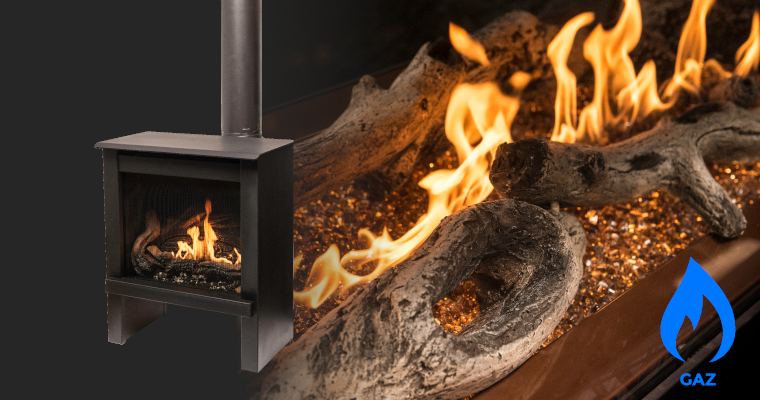

TN24
In the True North line, the TN24, a small gas stove, provides consistent heat and is easy to use.
Features
TN24
- SIT ProFlame 2 valve
- Integrated micro-mesh spark arrestor
- High-efficiency heat exchanger with aluminum fins
- Remote control
- Adjustable legs
- Rear vent capable
- Approved for mobile homes
- Ambient floor lighting
- Black porcelain panels interior and mature fire logset
- Two blowers of 2.27 m3 /min (80 cfm) each
Technical data – TN24
- Power (BTU): 12,000 to 24,000
- Efficiency (P4): 74.3% (LP and NG)
- Glass size: 2,194 cm2 (340 in.2)
A WARRANTY THAT CARES ABOUT THE PRODUCT
True North products are engineered to meet the requirements of value-conscious buyers. The warranty is extended to the original purchaser.
Wood products
- Three (3) years on parts and one (1) year on labour
- Combustion chamber, castings, glass (thermal break only, not by impact)
- One (1) year for parts and labour
- Electrical components and switches
- One (1) year for parts
- Gaskets, paint (flaking), bricks, baffle pipes, baffle manifold, ceramic fiberboard
Gas products
- Three (3) years for parts and one (1) year for labour
- Combustion chamber, castings, heat exchanger, ceramic fiber panels, glass (thermal break only, not by impact)
- One (1) year for parts and labour
- Gas valve, electrical components, and switches
- One (1) year for parts
- Gaskets, paint (flaking), complete tubular burner
Pellet products
- Three (3) years for parts and one (1) year for labour
- Combustion chamber, castings, glass (thermal break only, not by impact)
- One (1) year for parts and labour
- Electrical components and switches
- One (1) year for parts
- Gaskets, paint (flaking), bricks, combustion chamber thermal insulation, burn pot and insulation
For all conditions and exclusions, please consult the manufacturer’s website or user manual.
